  • VEGA 1685503 No.5-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

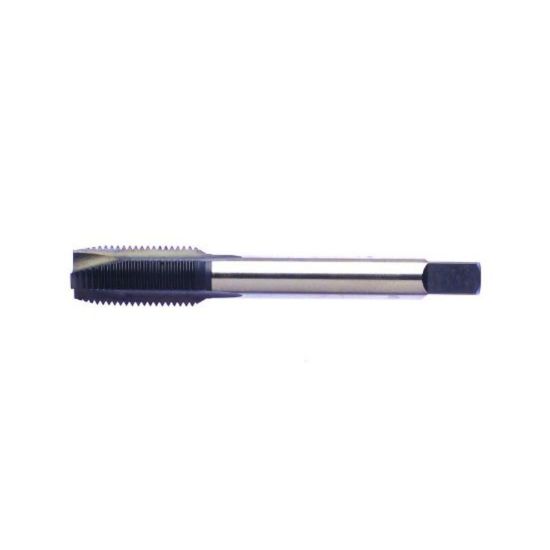

Picture of VEGA 1685503 No.5-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

VEGA 1685503 No.5-40.00TPI Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1685503
Delivery date: 3-5 days
$31.62

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Steam Oxide
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Square 0.1080
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flutes/Inserts 3
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.5P-5.0P
Dimension Standard ANSI/ANSI
Thread Pitch 40.00TPI
Cut Rating High Temp, Inconel, Titanium
Overall Len 1.9370 49.20MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
