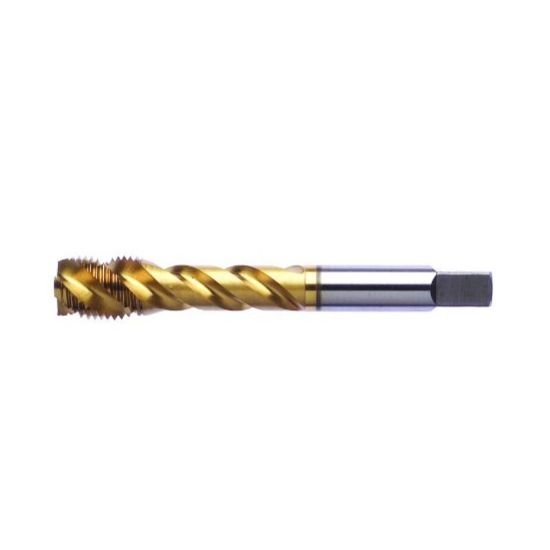

Picture of Vega 1684996 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Vega 1684996 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Part Number: VEG1684996
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$247.20
SKU: 1172915

Description

VEGA 7/8"x14.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN H4/GH4 NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Dimensions & Sizing
Overall Length 4.6880 119.08MM
Shank/Pilot Dia 0.6970 17.70MM
Flutes/Inserts 4
Thread Pitch 14.00TPI
Thread Size 7/8"
Tap Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5200
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H4/GH4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
