  • VEGA 1684947 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

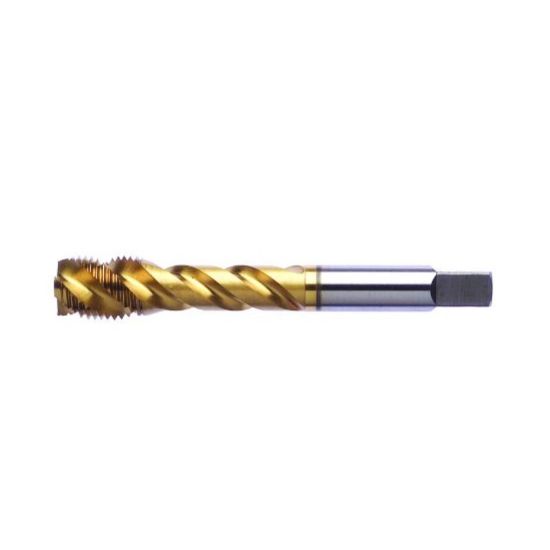

Picture of VEGA 1684947 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

VEGA 1684947 3/8-16.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1684947
Delivery date: 3-5 days
$32.31

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiN
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Flutes/Inserts 3
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Overall Len 2.9370 74.60MM
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tap Square 0.2860
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
