  • VEGA 1684920 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

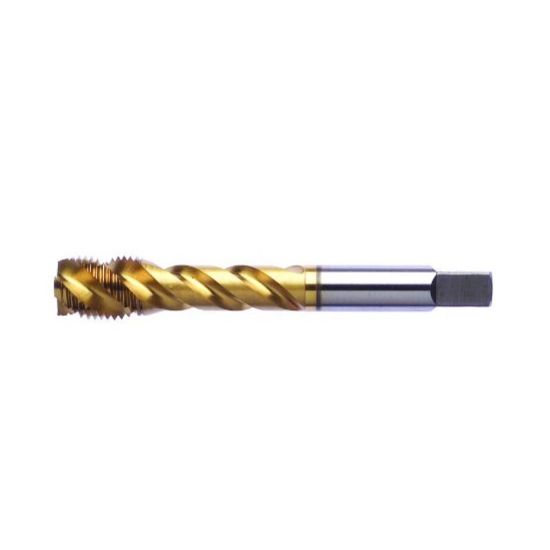

Picture of VEGA 1684920 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

VEGA 1684920 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1684920
Delivery date: 3-5 days
$48.26

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Type Mod Bottom
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Overall Len 3.1600 80.26MM
Tap Style Cut Spiral Flute
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Size 7/16"
Tap Square 0.2390
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
