  • VEGA 1684909 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

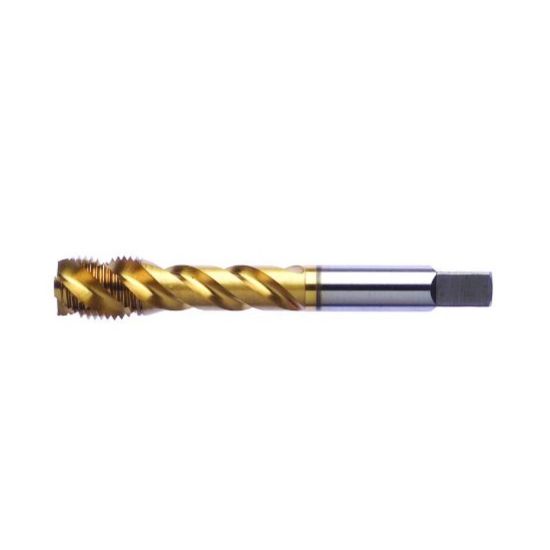

Picture of VEGA 1684909 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

VEGA 1684909 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1684909
Delivery date: 3-5 days
$20.80

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiN
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
