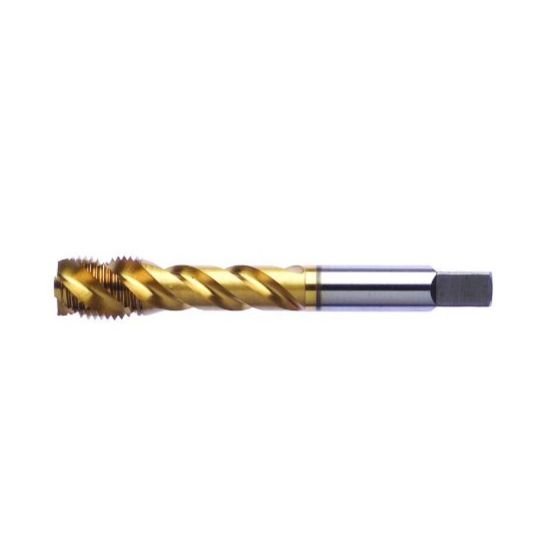

Picture of Vega 1684901 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Vega 1684901 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Part Number: VEG1684901
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$34.40
SKU: 1172889

Description

VEGA No.4x40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN H3/GH3 NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1080
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
