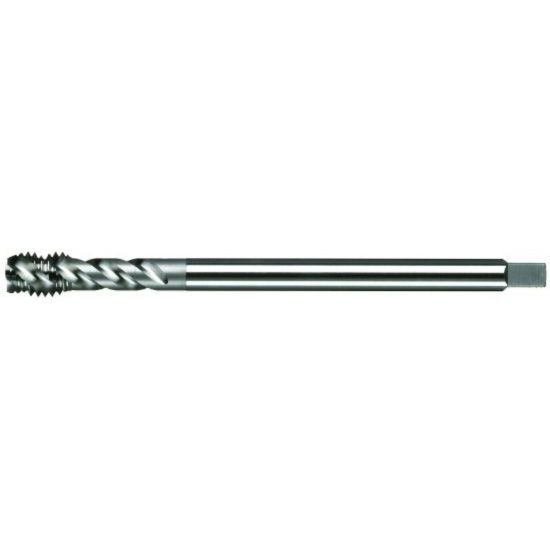

Picture of Vega 1684812 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Vega 1684812 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Part Number: VEG1684812

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172884
Vendor: Sussex Tool and Supply
$100.70
VEGA 3/8"x24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Thread Size 3/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Tap Chamfer 2.5P-3.5P
