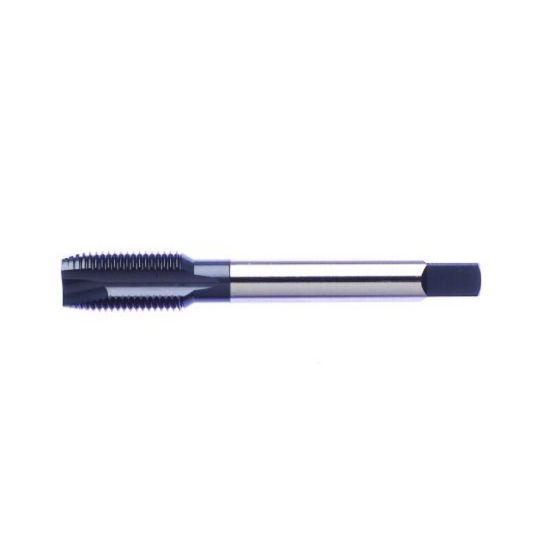

VEGA 1684669 No.10-24.00TPI Over Sized Mod Bottom Mod Bottom 2.5P-3.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1684669
Delivery date: 3-5 days
$15.81

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit GH7 +0.0035
Overall Len 2.3740 60.30MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Tap Style Over Sized Mod Bottom
Thread Type NC/UNC
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
