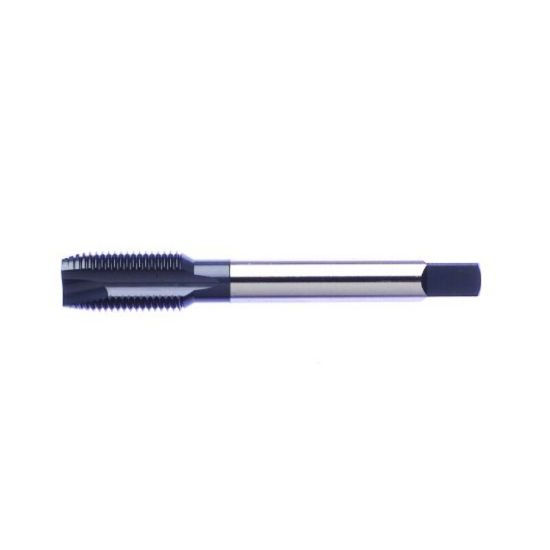

VEGA 1684613 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1684613
Delivery date: 3-5 days
$19.27

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Style Cut Spiral Flute
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1890
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Type Mod Bottom
Thread Size 1/4"
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
