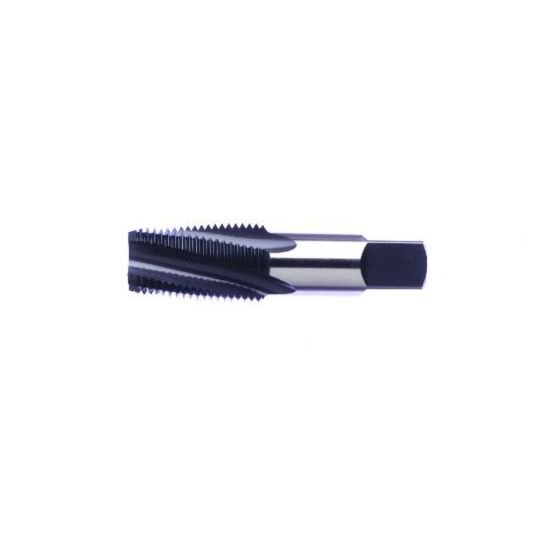

Picture of Vega 1683666 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Vega 1683666 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Part Number: VEG1683666

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172801
Vendor: Sussex Tool and Supply
$149.10
VEGA 3/4"x14.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating Steam Oxide
Overall Length 3.2520 82.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6760
