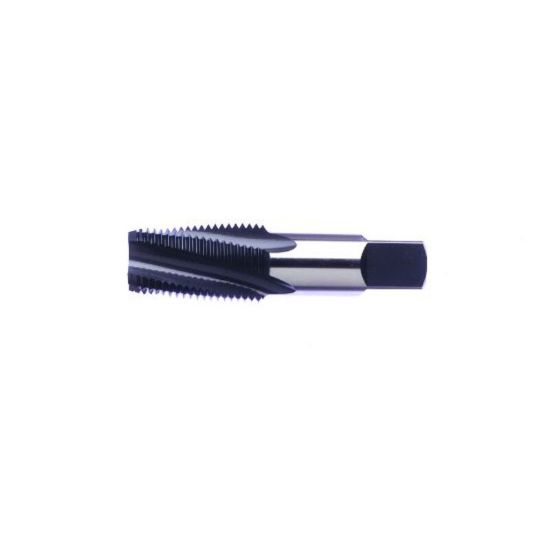

VEGA 1683665 1/2-14.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683665
Delivery date: 3-5 days
$84.10

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Length Type Standard
Dimension Standard ANSI/ANSI
Overall Len 3.1260 79.40MM
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Tap Square 0.5120
Tap Type Pipe
Flutes/Inserts 4
Tap Style Pipe Spiral Flute
Thread Pitch 14.00TPI
Thread Size 1/2"
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
