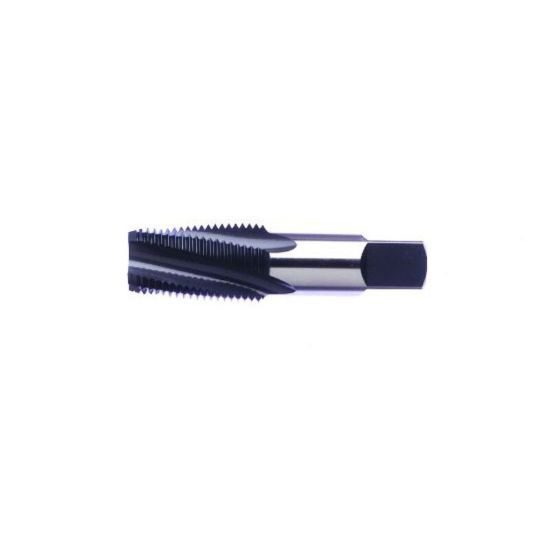

VEGA 1683664 3/8-18.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683664
Delivery date: 3-5 days
$50.34

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Performance Rating High Performance
Application Pipe Tapping, Spiral Flute Pipe, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size 3/8"
Flutes/Inserts 4
Thread Type NPT/NPTF/ANPT
Length Type Standard
Overall Len 2.5620 65.07MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.7000 17.78MM
Tap Square 0.5310
Tap Type Pipe
Dimension Standard ANSI/ANSI
Thread Pitch 18.00TPI
Thread Limit PIPE
Drill Range 0.5622 14.28MM
Tap Style Pipe Spiral Flute
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
