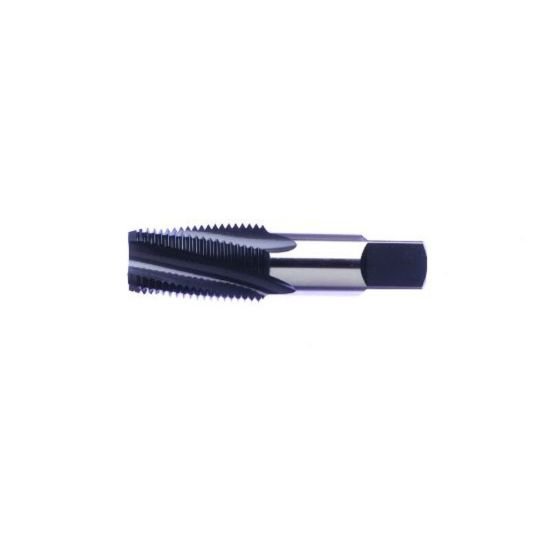

Picture of Vega 1683661 1/8-27.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Vega 1683661 1/8-27.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Part Number: VEG1683661

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172796
Vendor: Sussex Tool and Supply
$50.80
VEGA 1/8"x27.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide PIPE NPT/NPTF/ANPT Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating Steam Oxide
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 27.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3319 8.43MM
Tap Square 0.2320
