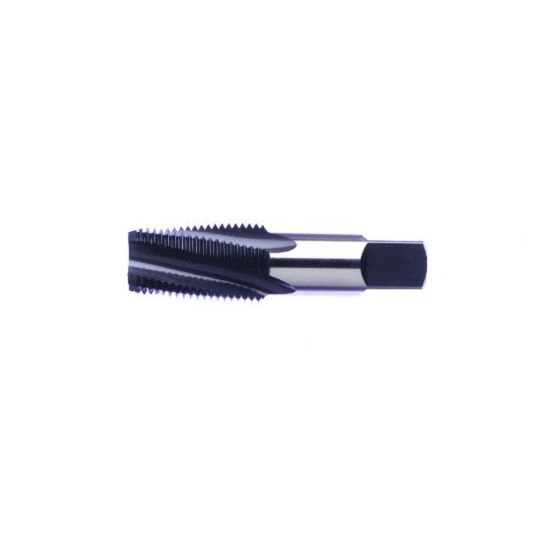

VEGA 1683647 1-11.50TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683647
Delivery date: 3-5 days
$186.78

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Coating Steam Oxide
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Square 0.8390
Thread Size 1"
Thread Pitch 11.50TPI
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Type NPT/NPTF/ANPT
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Overall Len 3.7520 95.30MM
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
