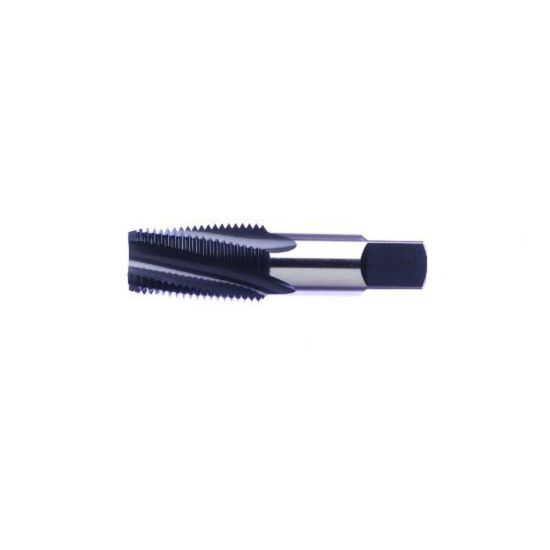

VEGA 1683646 3/4-14.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683646
Delivery date: 3-5 days
$122.86

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Type NPT/NPTF/ANPT
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Square 0.6760
Machine Side Connection Type Tap Collet
Drill Range 0.9059 23.01MM
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Tap Type Pipe
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.9063 23.02MM - 29/32
Overall Len 3.2520 82.60MM
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
