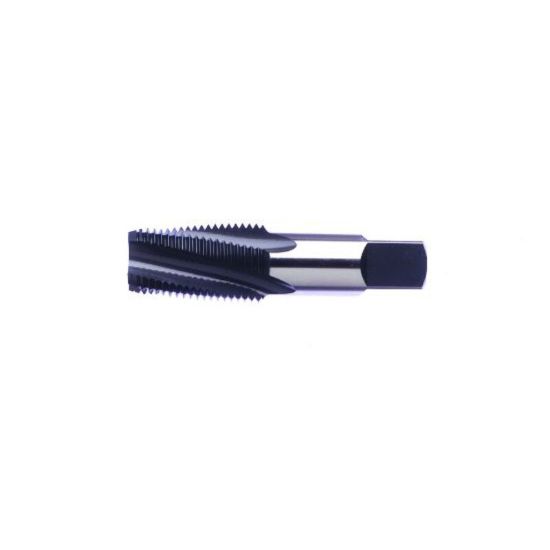

VEGA 1683643 1/4-18.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683643
Delivery date: 3-5 days
$41.95

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 18.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Pipe
Thread Size 1/4"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Overall Len 2.4370 61.90MM
Tap Square 0.1890
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
