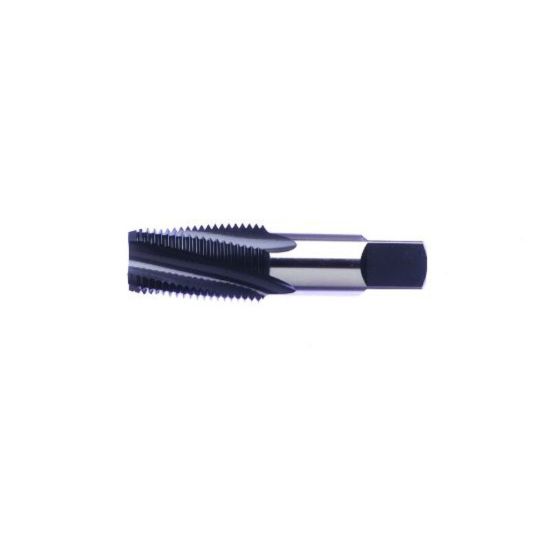

VEGA 1683641 1/8-27.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683641
Delivery date: 3-5 days
$37.72

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tap Square 0.2320
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Size 1/8"
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tap Type Pipe
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Drill Range 0.3319 8.43MM
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Overall Len 2.1250 53.98MM
Tap Style Pipe Spiral Flute
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
