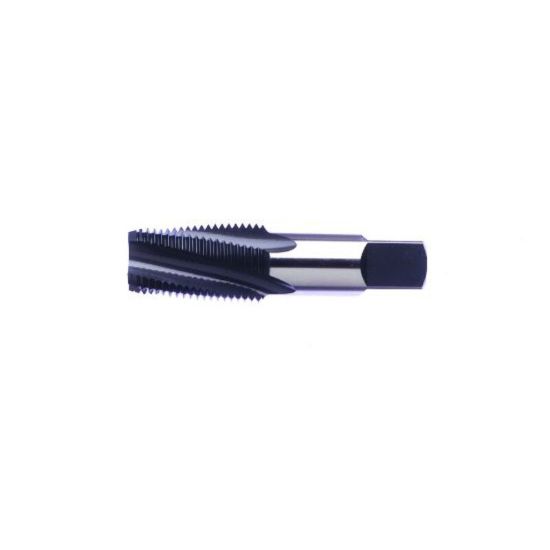

VEGA 1683640 1/16-27.00TPI Pipe Spiral Flute Pipe HSSE-V Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1683640
Delivery date: 3-5 days
$37.72

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Coating Steam Oxide
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Pipe
Overall Len 2.1250 53.98MM
Dimension Standard ANSI/ANSI
Flutes/Inserts 4
Drill Range 0.2417 6.14MM
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Square 0.2340
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
