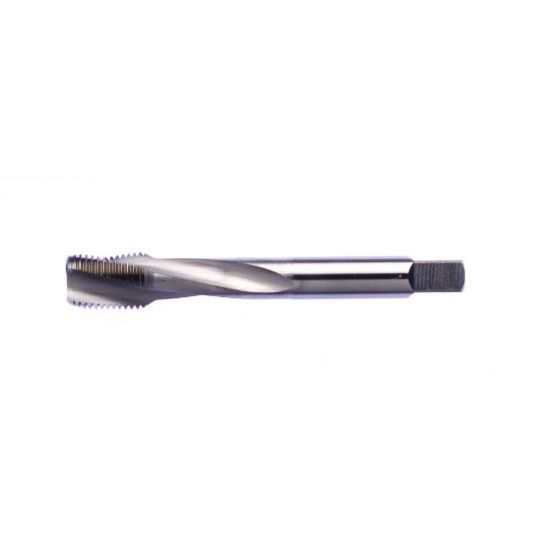

VEGA 1677623 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1677623
Delivery date: 3-5 days
$47.42

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating Nitride
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Limit D5
Tap Square 0.2360
Thread Size M8
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
