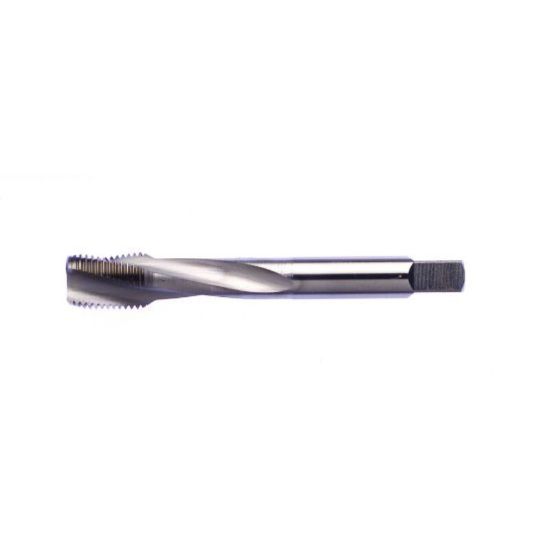

VEGA 1677620 M6-1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1677620
Delivery date: 3-5 days
$38.90

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Thread Size M6
Flutes/Inserts 3
Tap Square 0.1890
Tap Chamfer 2.5P-3.5P
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
