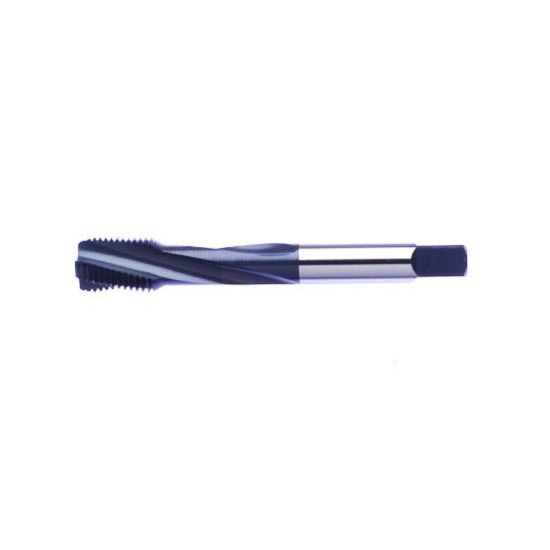

VEGA 1677523 M8-1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1677523
Delivery date: 3-5 days
$43.06

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Thread Pitch 1.25MM
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Thread Size M8
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Dimension Standard ANSI/ANSI
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
