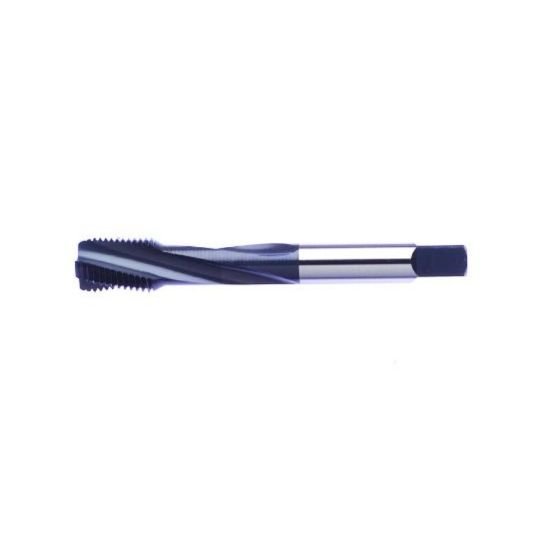

Picture of Vega 1677515 M3-0.50mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

Vega 1677515 M3-0.50mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-Powder Metal Steam Oxide

Part Number: VEG1677515

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172693
Vendor: Sussex Tool and Supply
$61.30
VEGA M3x0.50MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-PM Steam Oxide D3 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Steam Oxide
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Square 0.1080
Tap Chamfer 2.5P-3.5P
