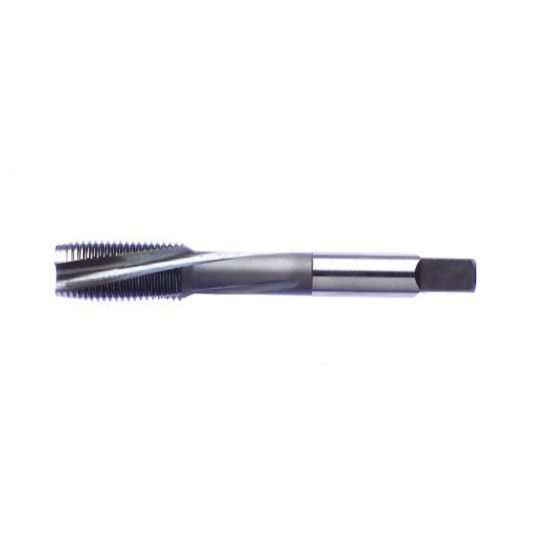

VEGA 1675619 M5-0.80MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1675619
Delivery date: 3-5 days
$28.77

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating Nitride
Dimensional Specifications
Tap Style Cut Spiral Point
Thread Pitch 0.80MM
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size M5
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Overall Len 2.3740 60.30MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
