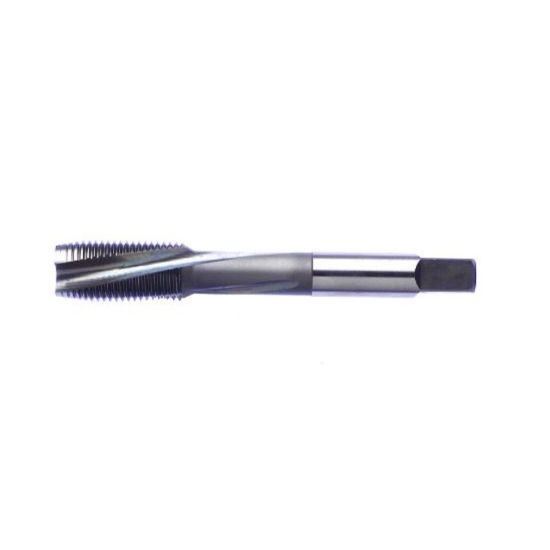

VEGA 1675617 M4-0.70MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1675617
Delivery date: 3-5 days
$28.50

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State Illinois
Coating Nitride
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1680 4.27MM
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Tap Style Cut Spiral Point
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Pitch 0.70MM
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
