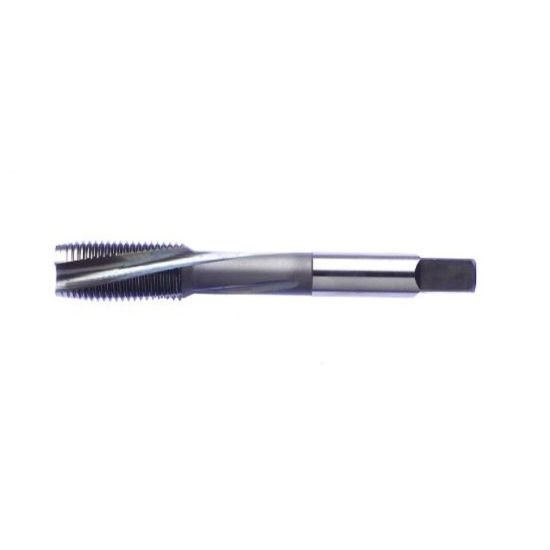

Vega 1675617 M4-0.70mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Part Number: VEG1675617

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172661
$38.40
VEGA M4x0.70MM Cut Spiral Point Plug 3.5P-5.0P HSSE-PM Nitride D4 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit D4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1290
Tap Chamfer 3.5P-5.0P
