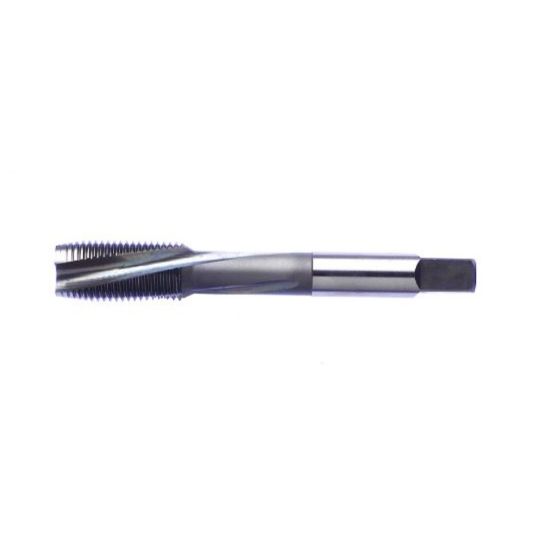

VEGA 1675615 M3-0.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Nitride

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1675615
Delivery date: 3-5 days
$37.44

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Thread Limit D3
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Tap Chamfer 3.5P-5.0P
Thread Size M3
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Flute Direction R - Right
Length Type Standard
Tap Square 0.1080
Tool Material Steel
Overall Len 2.9370 74.60MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
