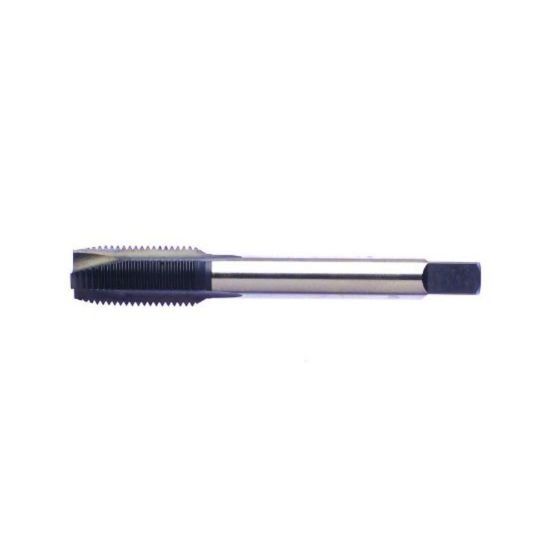

Picture of Vega 1675517 M4-0.70mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

Vega 1675517 M4-0.70mm Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

Part Number: VEG1675517

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172656
Vendor: Sussex Tool and Supply
$35.50
VEGA M4x0.70MM Cut Spiral Point Plug 3.5P-5.0P HSSE-PM Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-PM
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Steam Oxide
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit D4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1290
Tap Chamfer 3.5P-5.0P
