  • VEGA 1675515 M3-0.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

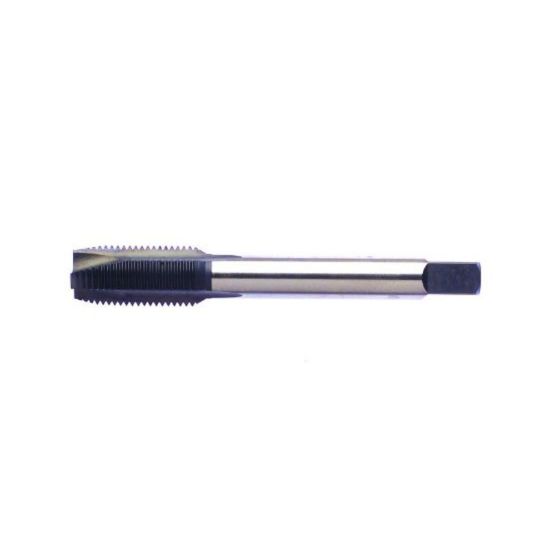

Picture of VEGA 1675515 M3-0.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

VEGA 1675515 M3-0.50MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1675515
Delivery date: 3-5 days
$33.83

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Steam Oxide
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 3.5P-5.0P
Thread Limit D3
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Tap Square 0.1080
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Thread Size M3
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
