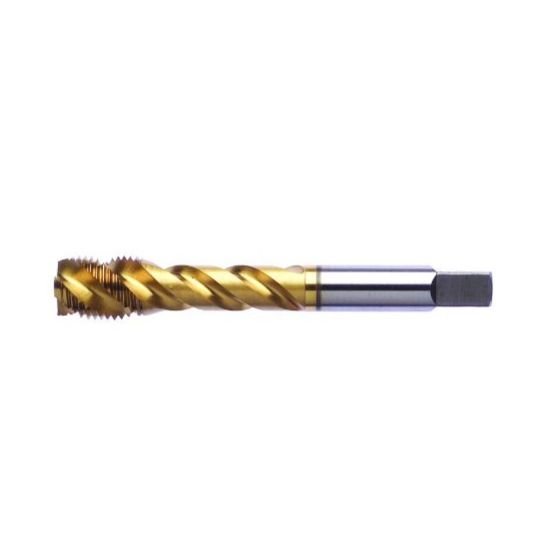

Picture of Vega 1674932 M18-1.50mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Vega 1674932 M18-1.50mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Part Number: VEG1674932

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172652
Vendor: Sussex Tool and Supply
$198.90
VEGA M18x1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN D6 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating TIN
Overall Length 4.0310 102.39MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M18
Thread Limit D6
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Tap Square 0.4330
Tap Chamfer 2.5P-3.5P
