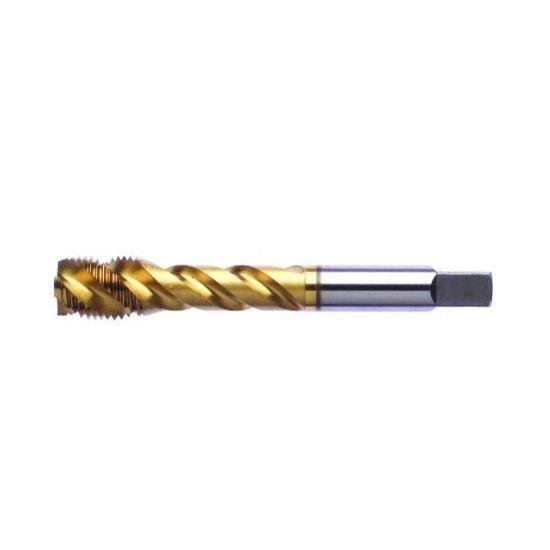

Picture of Vega 1674926 M12-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Vega 1674926 M12-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN

Part Number: VEG1674926

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172646
Vendor: Sussex Tool and Supply
$70.40
VEGA M12x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V TiN D5 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron
Coating TIN
Overall Length 3.3740 85.70MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2720
Tap Chamfer 2.5P-3.5P
