  • VEGA 1674876 M12-1.75MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

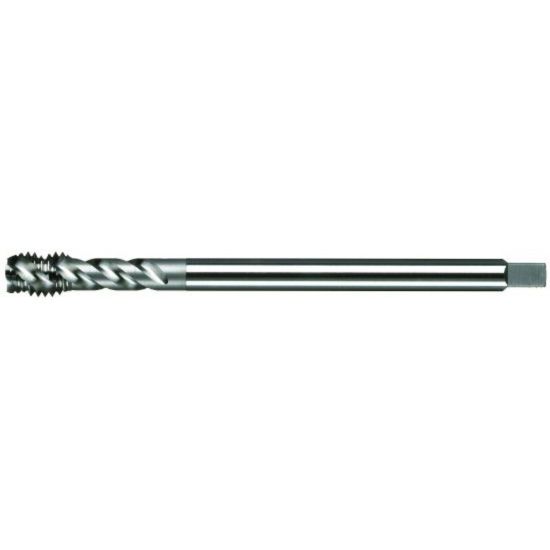

Picture of VEGA 1674876 M12-1.75MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

VEGA 1674876 M12-1.75MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1674876
Delivery date: 3-5 days
$86.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Tap Chamfer 2.5P-3.5P
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Long
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Overall Len 6.0000 152.40MM
Thread Size M12
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.2720
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
