  • VEGA 1674875 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

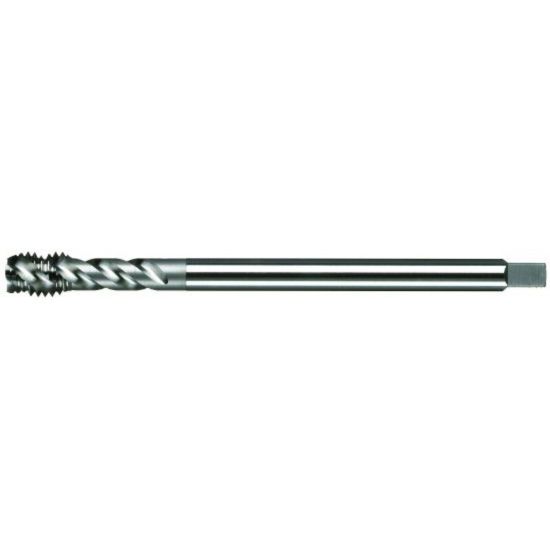

Picture of VEGA 1674875 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

VEGA 1674875 M10-1.50MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1674875
Delivery date: 3-5 days
$82.99

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Thread Limit D6
Thread Size M10
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Type Mod Bottom
Thread Pitch 1.50MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Tap Square 0.2840
Tap Style Cut Spiral Flute
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
