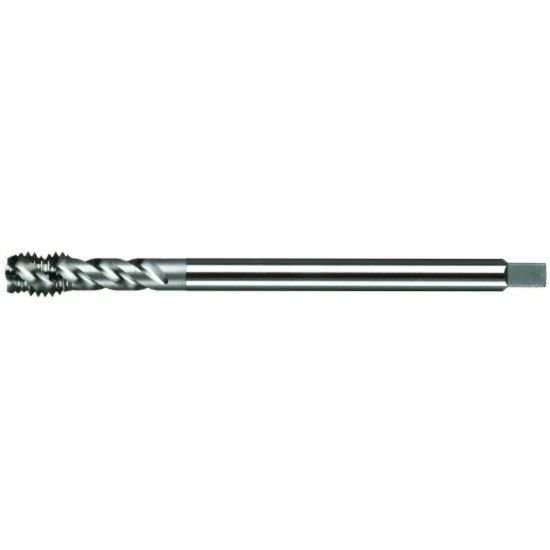

Picture of Vega 1674874 M8-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Vega 1674874 M8-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Part Number: VEG1674874
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$109.10
SKU: 1172633

Description

VEGA M8x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard ANSI/ANSI
