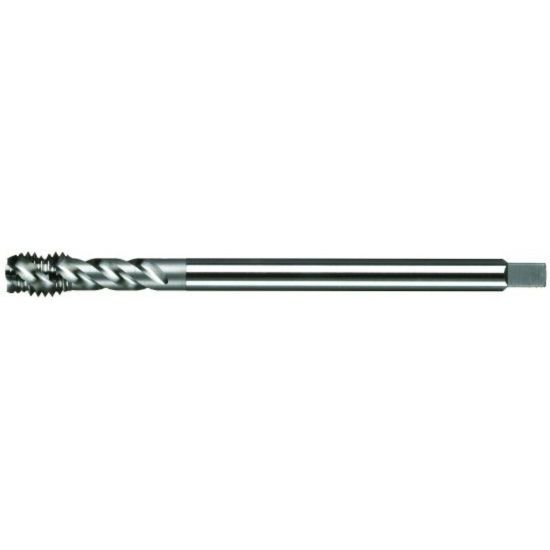

Picture of Vega 1674873 M6-1.00mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Vega 1674873 M6-1.00mm Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Part Number: VEG1674873
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$103.90
SKU: 1172632

Description

VEGA M6x1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.5P
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1890
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Standards & Identification
Dimension Standard ANSI/ANSI
