  • VEGA 1674871 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

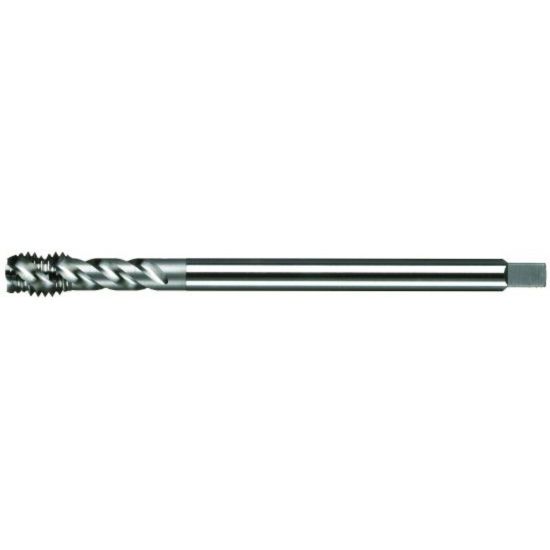

Picture of VEGA 1674871 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

VEGA 1674871 M4-0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG1674871
Delivery date: 3-5 days
$63.37

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 6.0000 152.40MM
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Thread Pitch 0.70MM
Dimension Standard ANSI/ANSI
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Tap Chamfer 2.5P-3.5P
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Long
Thread Limit D4
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Square 0.1290
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
