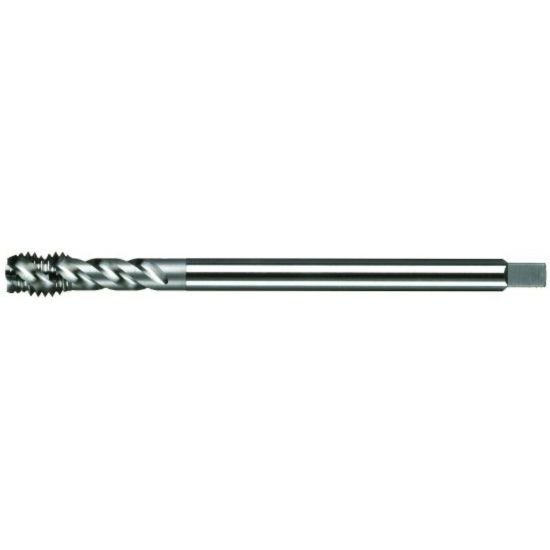

Picture of Vega 1644802 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Vega 1644802 No.4-40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated Pulley Long

Part Number: VEG1644802

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1172563
Vendor: Sussex Tool and Supply
$89.00
VEGA No.4x40.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.5P HSSE-V Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 40.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.4
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Square 0.1080
Tap Chamfer 2.5P-3.5P
