  • VEGA 01494002TI M12-1.75MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

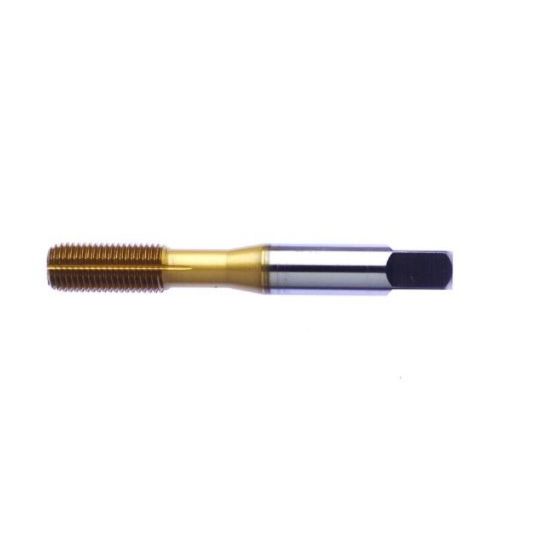

Picture of VEGA 01494002TI M12-1.75MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01494002TI M12-1.75MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01494002TI
Delivery date: 3-5 days
$43.40

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Thread Size M12
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Tap Square 0.2730
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 3.3740 85.70MM
Tap Chamfer 1.5P-2.5P
Thread Limit 6H
Flute Direction Roll
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
