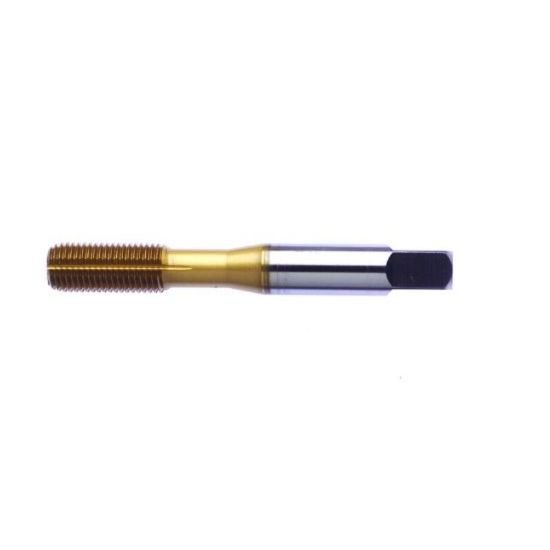

Picture of Vega 01494002TI M12-1.75mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Vega 01494002TI M12-1.75mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Part Number: VEG01494002TI
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$58.50
SKU: 1173068

Description

VEGA M12x1.75MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.5P
Dimensions & Sizing
Overall Length 3.3740 85.70MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 1.75MM
Thread Size M12
Tap Drill Range 0.4374 11.11MM - 0.4469 11.35MM
Tap Square 0.2730
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-C
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
