  • VEGA 01494000TI M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

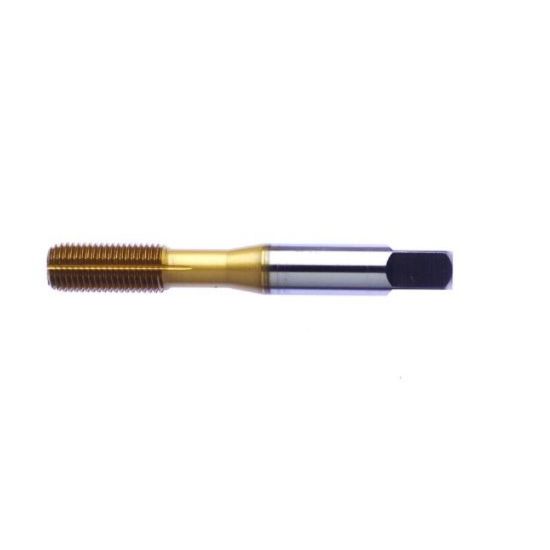

Picture of VEGA 01494000TI M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01494000TI M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01494000TI
Delivery date: 3-5 days
$48.53

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Illinois
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Size M10
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Thread Limit 6H
Flute Direction Roll
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Style Cut Spiral Flute
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Square 0.2840
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
