  • VEGA 01493999TI M8-1.25MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN
Picture of VEGA 01493999TI M8-1.25MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

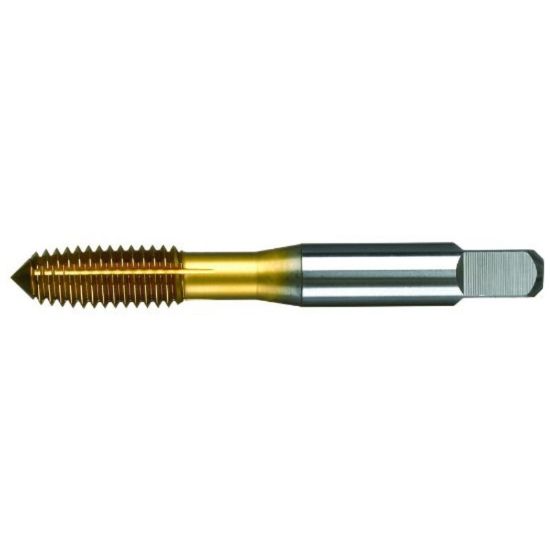

VEGA 01493999TI M8-1.25MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493999TI
Delivery date: 3-5 days
$29.61

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Illinois
Coating TiN
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size M8
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 1.25MM
Flute Direction Roll
Machine Side Connection Type Tap Collet
Tap Square 0.2360
Tap Style Cut Spiral Point
Thread Limit 6H
Overall Len 2.7200 69.09MM
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
