  • VEGA 01493998TI M8-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

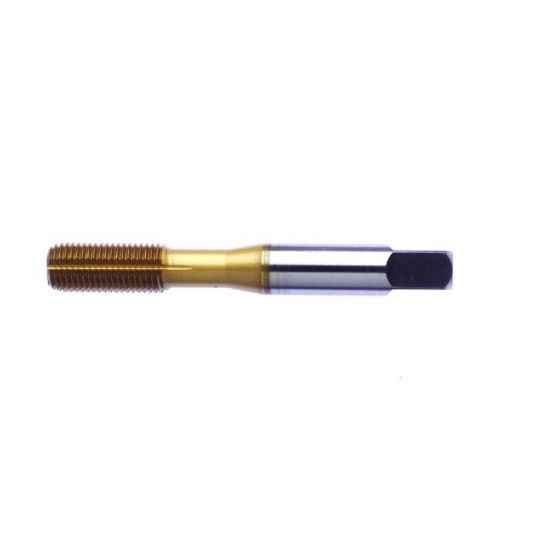

Picture of VEGA 01493998TI M8-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493998TI M8-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493998TI
Delivery date: 3-5 days
$32.59

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction Roll
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Square 0.2360
Thread Size M8
Thread Type Metric
Overall Len 2.7200 69.09MM
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 1.5P-2.5P
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Limit 6H
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
