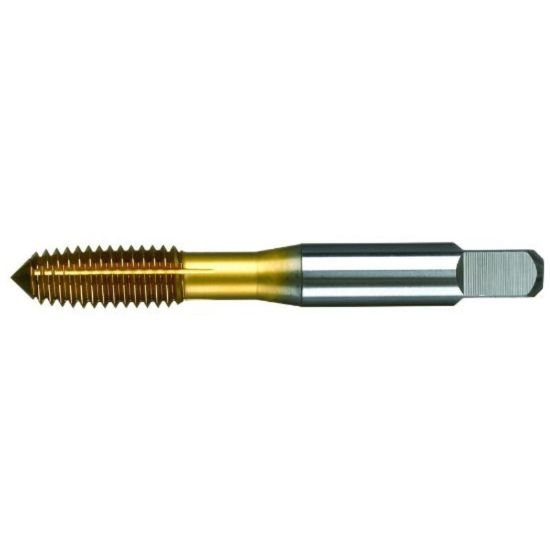

Picture of Vega 01493997TI M6-1.00mm Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Vega 01493997TI M6-1.00mm Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Part Number: VEG01493997TI
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$37.80
SKU: 1173064

Description

VEGA M6x1.00MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Square 0.1890
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-C
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
