  • VEGA 01493996TI M6-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

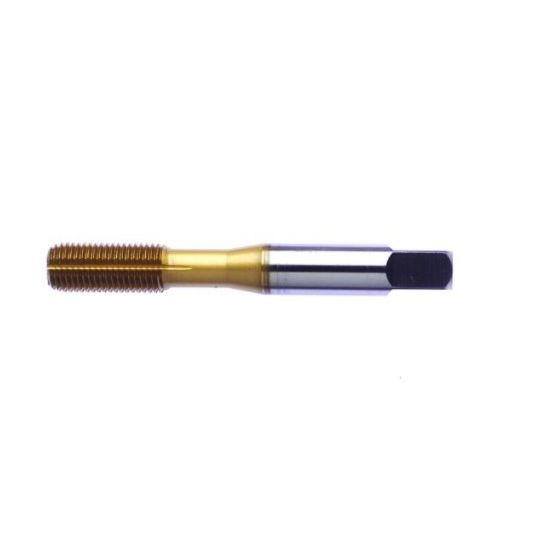

Picture of VEGA 01493996TI M6-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493996TI M6-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493996TI
Delivery date: 3-5 days
$28.08

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tap Square 0.1890
Tap Chamfer 1.5P-2.5P
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Tap Type Bottoming
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Length Type Standard
Thread Size M6
Thread Limit 6H
Flute Direction Roll
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Flute
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
