  • VEGA 01493995TI M5-0.80MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

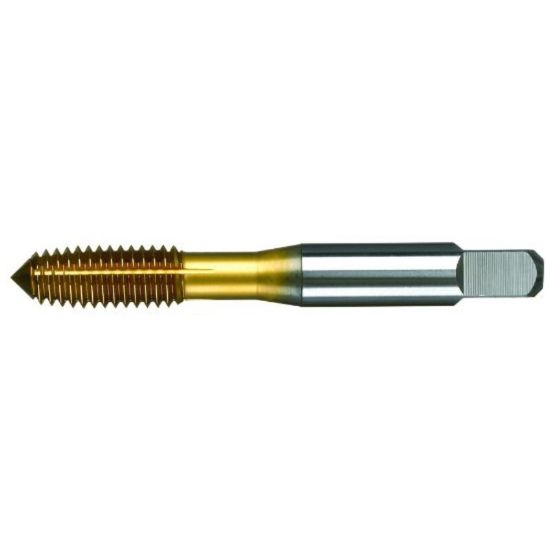

Picture of VEGA 01493995TI M5-0.80MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

VEGA 01493995TI M5-0.80MM Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493995TI
Delivery date: 3-5 days
$24.75

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Coating TiN
Shipping State Illinois
Dimensional Specifications
Thread Pitch 0.80MM
Tap Chamfer 3.0P-5.0P
Overall Len 2.3740 60.30MM
Thread Size M5
Dimension Standard ANSI/ANSI
Thread Limit 6H
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Length Type Standard
Flute Direction Roll
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
