  • VEGA 01493994TI M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

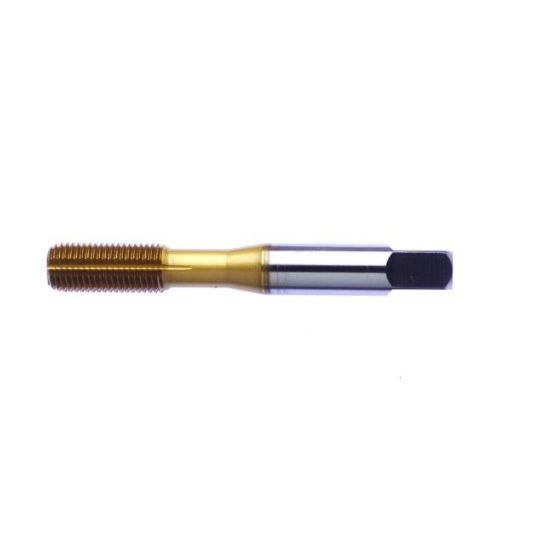

Picture of VEGA 01493994TI M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493994TI M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493994TI
Delivery date: 3-5 days
$27.53

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiN
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1500
Flute Direction Roll
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Thread Pitch 0.80MM
Thread Type Metric
Overall Len 2.3740 60.30MM
Thread Size M5
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Chamfer 1.5P-2.5P
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
