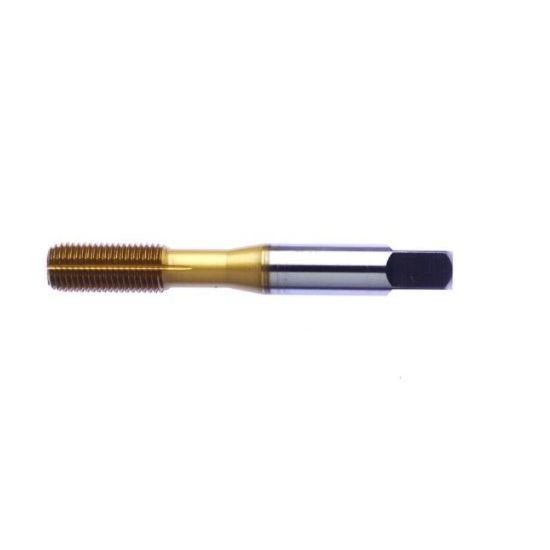

Picture of Vega 01493994TI M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Vega 01493994TI M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Part Number: VEG01493994TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173061
Vendor: Sussex Tool and Supply
$37.10
VEGA M5x0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.3740 60.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1500
Tap Chamfer 1.5P-2.5P
