  • VEGA 01493876TI 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

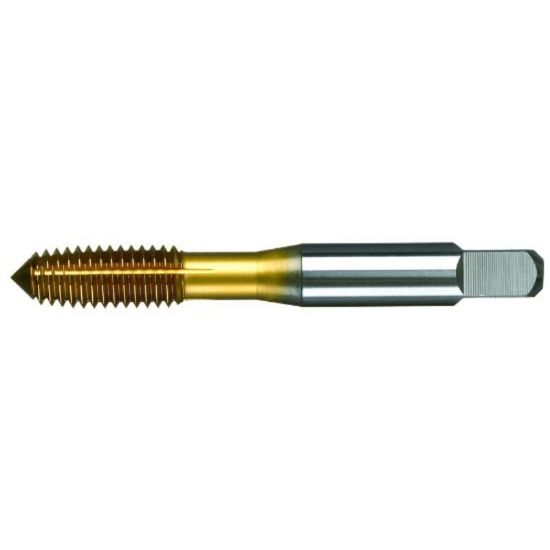

Picture of VEGA 01493876TI 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

VEGA 01493876TI 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493876TI
Delivery date: 3-5 days
$40.42

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Thread Limit 2B
Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Type Plug
Tap Chamfer 3.0P-5.0P
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Flute Direction Roll
Tap Square 0.2860
Tool Material Steel
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Overall Len 2.9370 74.60MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-C
Industry-Specific Applications
Job Shop Yes
