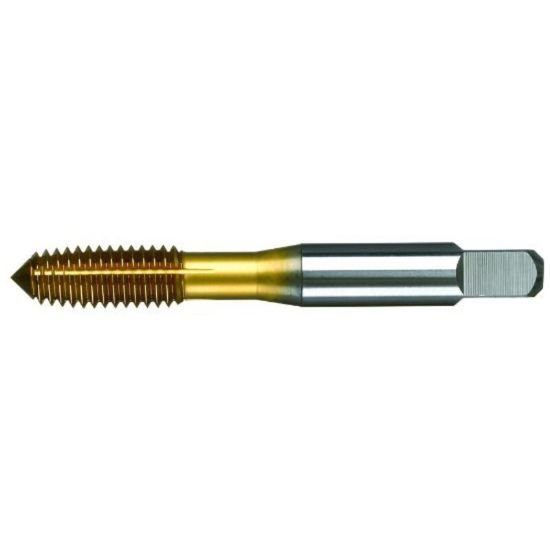

Picture of Vega 01493876TI 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Vega 01493876TI 3/8-16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Part Number: VEG01493876TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173055
Vendor: Sussex Tool and Supply
$49.40
VEGA 3/8"x16.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3429 8.71MM - 0.3516 8.93MM
Tap Square 0.2860
Tap Chamfer 3.0P-5.0P
