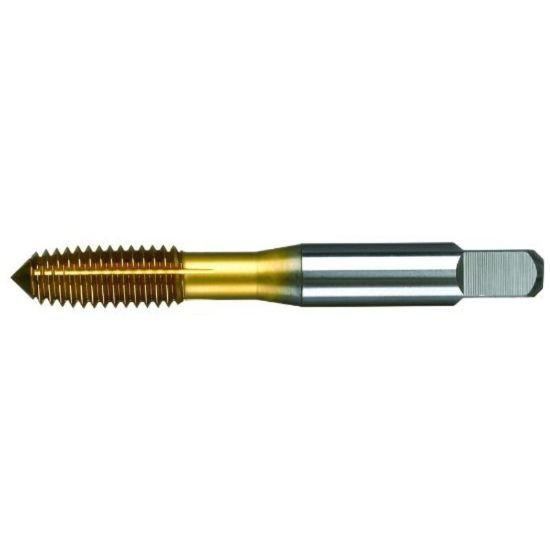

Picture of Vega 01493872TI 5/16-18.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Vega 01493872TI 5/16-18.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN

Part Number: VEG01493872TI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: 1173054
Vendor: Sussex Tool and Supply
$36.30
VEGA 5/16"x18.00TPI Cut Spiral Point Plug 3.0P-5.0P HSSE-C TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-C
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size 5/16"
Thread Limit 2B
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2360
Tap Chamfer 3.0P-5.0P
