  • VEGA 01493838TI 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

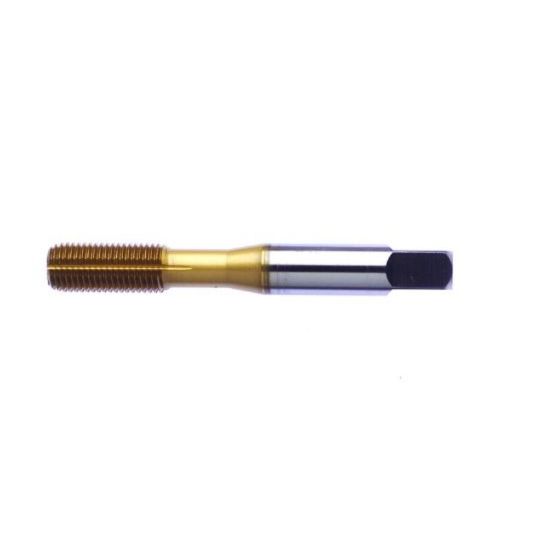

Picture of VEGA 01493838TI 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

VEGA 01493838TI 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-C TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: VEGA
SKU: VEG01493838TI
Delivery date: 3-5 days
$25.58

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiN
Dimensional Specifications
Tool Material Steel
Thread Type NC/UNC
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Chamfer 1.5P-2.5P
Thread Pitch 20.00TPI
Flute Direction Roll
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Flute
Thread Size 1/4"
Thread Limit 2B
Shank/Pilot Dia 0.2550 6.48MM
Tap Square 0.1890
Cutting & Machining Properties
Cutting Edge Mat HSSE-C
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
